Merlin-1000
Multi-Game ROM Board for Dragon's Lair and Space Ace

The Merlin-1000 ROM board holds the game software for both Dragon's Lair and Space Ace.
Once installed in your game machine, you can easily play either game.

*NEW* Dragon's Lair II Enhancement is now available.
Play "Time Warp" in your 1983 Dragon's Lair or Space Ace game cabinet!
Choose the DL2E option and have all three games available in one machine.

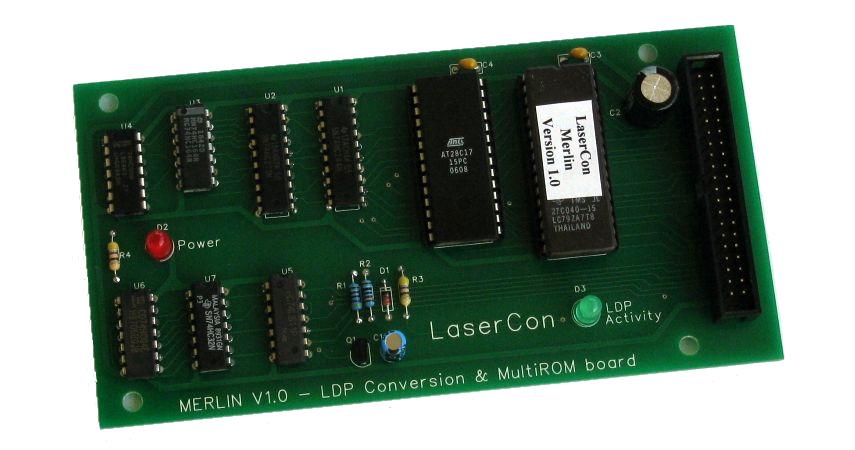

The Merlin-1000 board directly replaces the original ROM board used in the arcade version machines of Dragon's Lair and Space Ace.
It works with the original factory players: Pioneer PR-7820 or Pioneer LD-V1000.
And it works with all player conversion boards: LaserCon LDP Converter, Hi-Tech, and Laser Ace.

_________________________________________________________________________________________________________

If you want to upgrade your laserdisc player to the superior Pioneer LD-V8000 or LD-V4400...
Then you will need The Merlin-8000 Enhancement board.

If you want to upgrade your laserdisc player to the Dexter Replacement Player...
Then you will need The Merlin-Dx Enhancement Board. (coming soon)

_________________________________________________________________________________________________________

ROMs Included with Merlin:
Dragon's Lair Version F2 - The final factory Version
Dragon's Lair Enhancement
Space Ace version A3 - The final factory version
Space Ace Enhancement

*Now available as an optional add-on*
Dragon's Lair II Enhancement - Time Warp

Once you install the Merlin 1000 board, multiple ROM-sets are available.
You can easily change the game software, change the laserdisc if necissary,
select your desired game via the joystick, all without shutting down the machine.
Or if you don't want to change ROM software, Merlin can be configured to always auto-start your one favorite game

Kit includes: The Merlin-1000 Multi-Game ROM board and easy instructions.
Sorry, laserdiscs and laserdisc players are not included.

Merlin-1000 Board

With included ROM sets:
Dragon's Lair F2
Dragon's Lair Enhancement
Space Ace A3
Space Ace Enhancement


$150 plus $5 S&H within the U.S.A.

Merlin-1000 Board with DL2E

With included ROM sets:
Dragon's Lair F2
Dragon's Lair Enhancement
Space Ace A3
Space Ace Enhancement
Dragon's Lair II Enhancement

$210 plus $5 S&H within the U.S.A.

Dragon's Lair II Enhancement
Upgrade



Add "DL2E"
to your existing
Merlin or MultiROM board


Click Here for more information.


For International Orders, Multiple Orders, or Payment via Money Order, email me first.

Do you have a question? Would you like some technical help?
Send email to shaun@wood1st.com

Support:
The latest firmware for Merlin-1000 is Version 4.3
Get an updated EPROM Here
Or you can request the upgrade file by email: shaun@wood1st.com

Downloads:
Merlin-1000 Set-up Instructions - Firmware 4.x (pdf)
Dip-Switch charts for use with Merlin-1000 - Firmware 4.x (pdf)

Merlin-1000 Set-up Instructions - Firmware 2 & 3 (pdf)
Dip-Switch charts for use with Merlin-1000 - Firmware 3.x (pdf)
Dip-Switch charts for use with Merlin-1000 - Firmware 2.x (pdf)

Merlin-1000 Set-up Instructions - Firmware 1.x (pdf)
Dip-Switch charts for use with Merlin-1000 - Firmware 1.x (pdf)

Older Firmware:
Merlin-1000 was originally known as "LaserCon-MultiROM" and included 15 ROM sets.
This older firmware is available here...
MultiROM Set-up Instructions (pdf)
Dip-Switch charts for use with MultiROM - Firmware 3.x (pdf)
Dip-Switch charts for use with MultiROM - Firmware 1.x-2.x (pdf)
MultiROM Firmware Version 3.11 - Use with all hardware versions of MultiROM.
