Procedure
Remove the upper ROM board from your Dragon's Lair or Space Ace boardset.
Remove the existing EPROM chips.

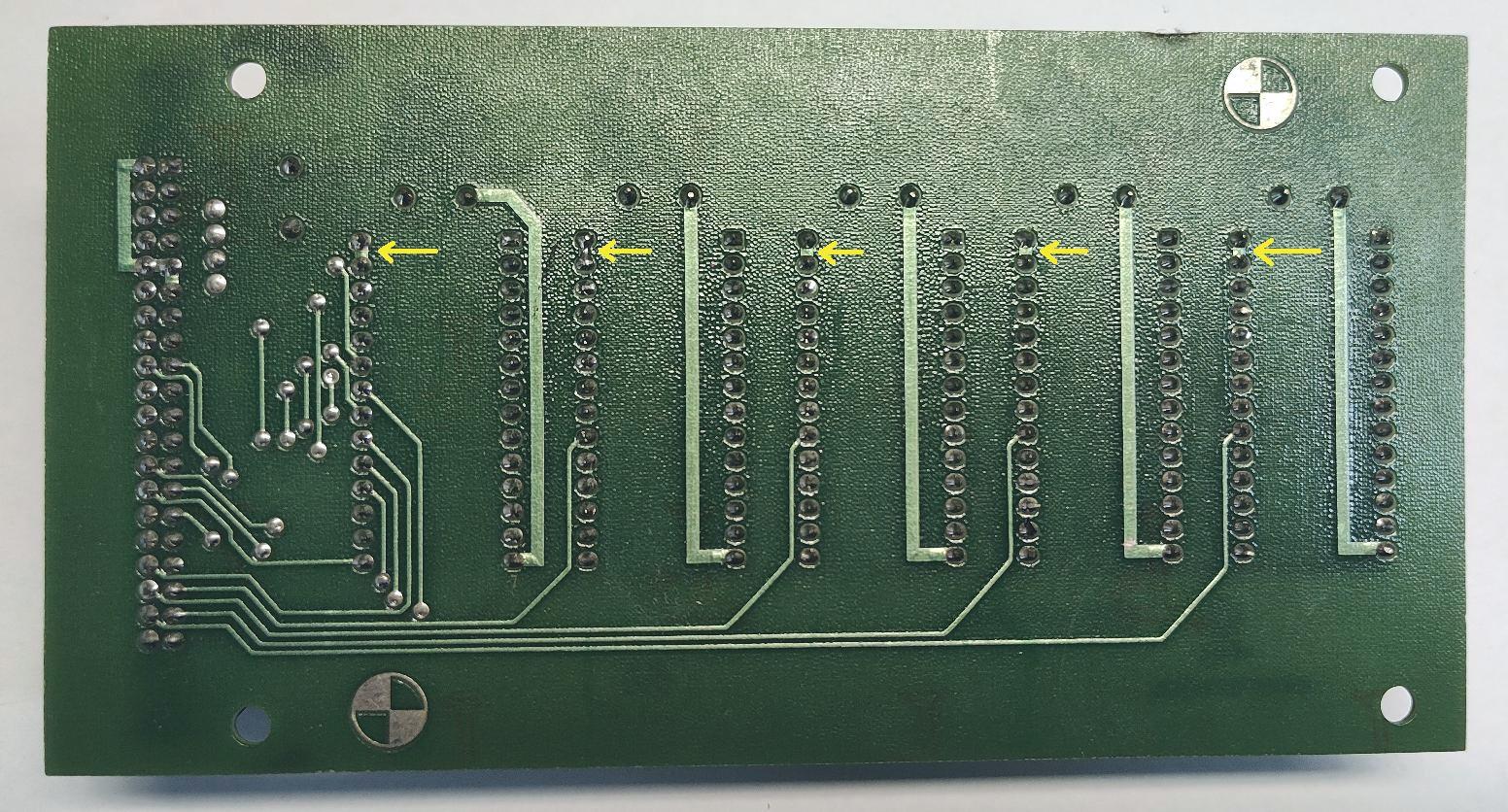

On the backside, locate the circuit bridge connecting pins 27 & 28 for each EPROM...
Cut out the small bit of circuit between the pins...

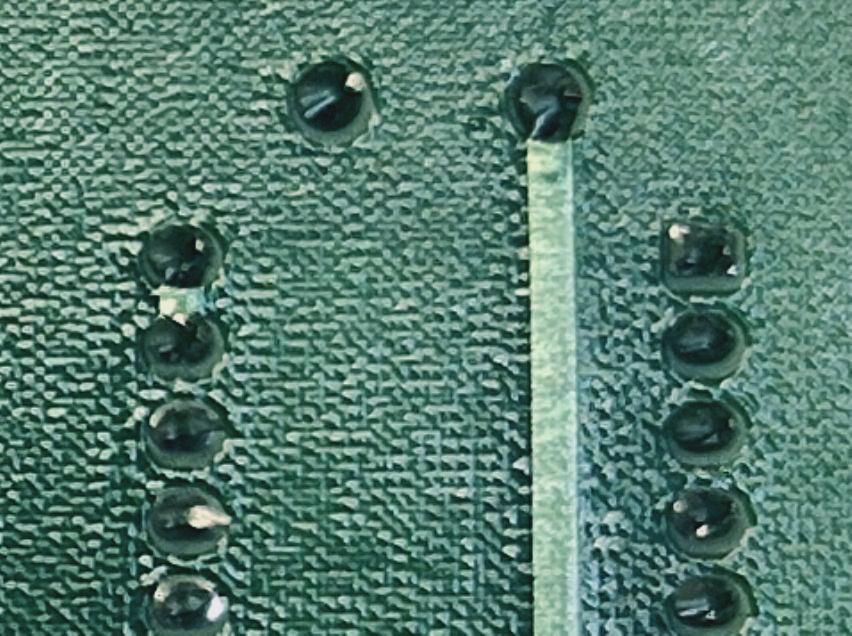

Before

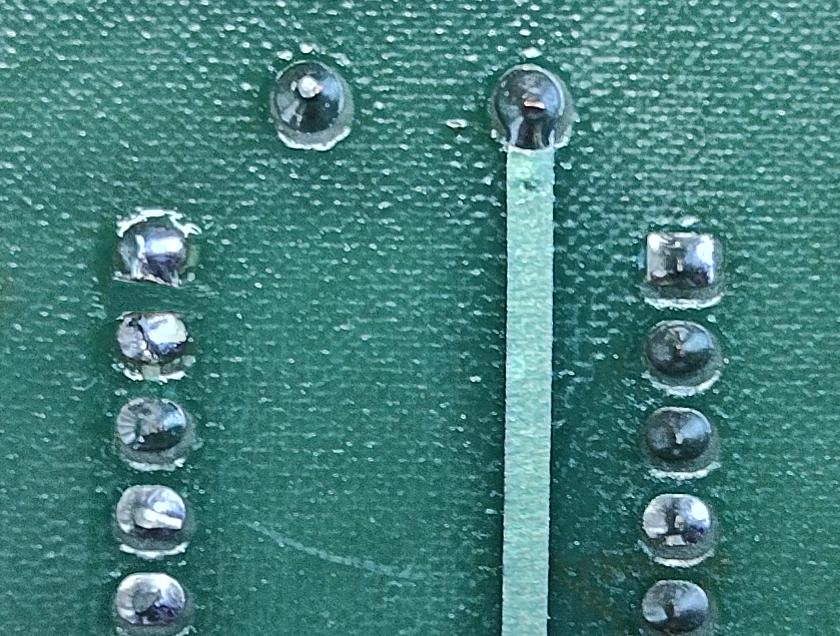

After
Repeat for all five EPROM sockets (U1 - U5).
Take note of the 4 solder points in a vertical stack on the left side of the board.

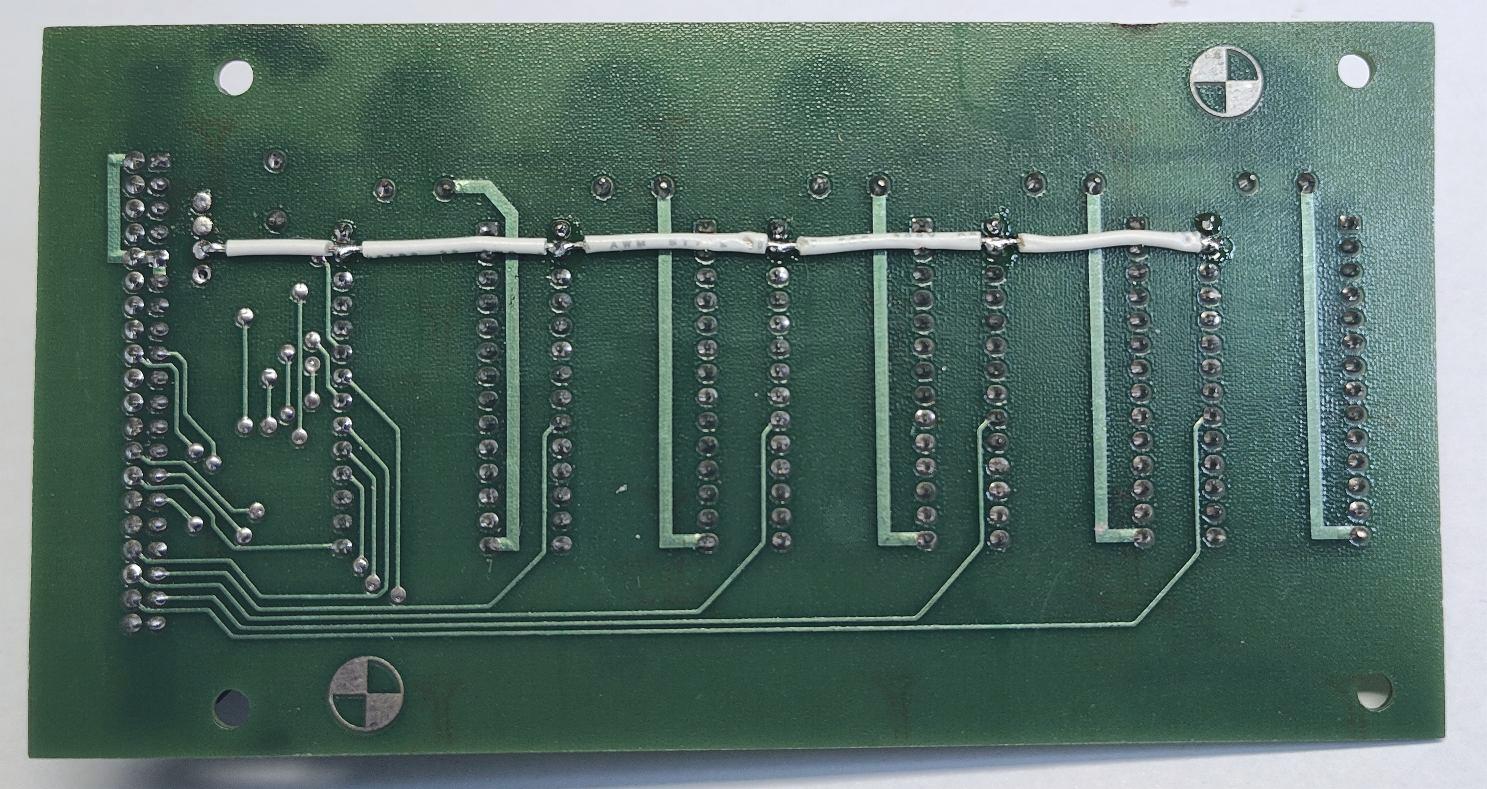

Solder a jumper wire connecting pin-27 on all five EPROMs to the 3rd solder point down...

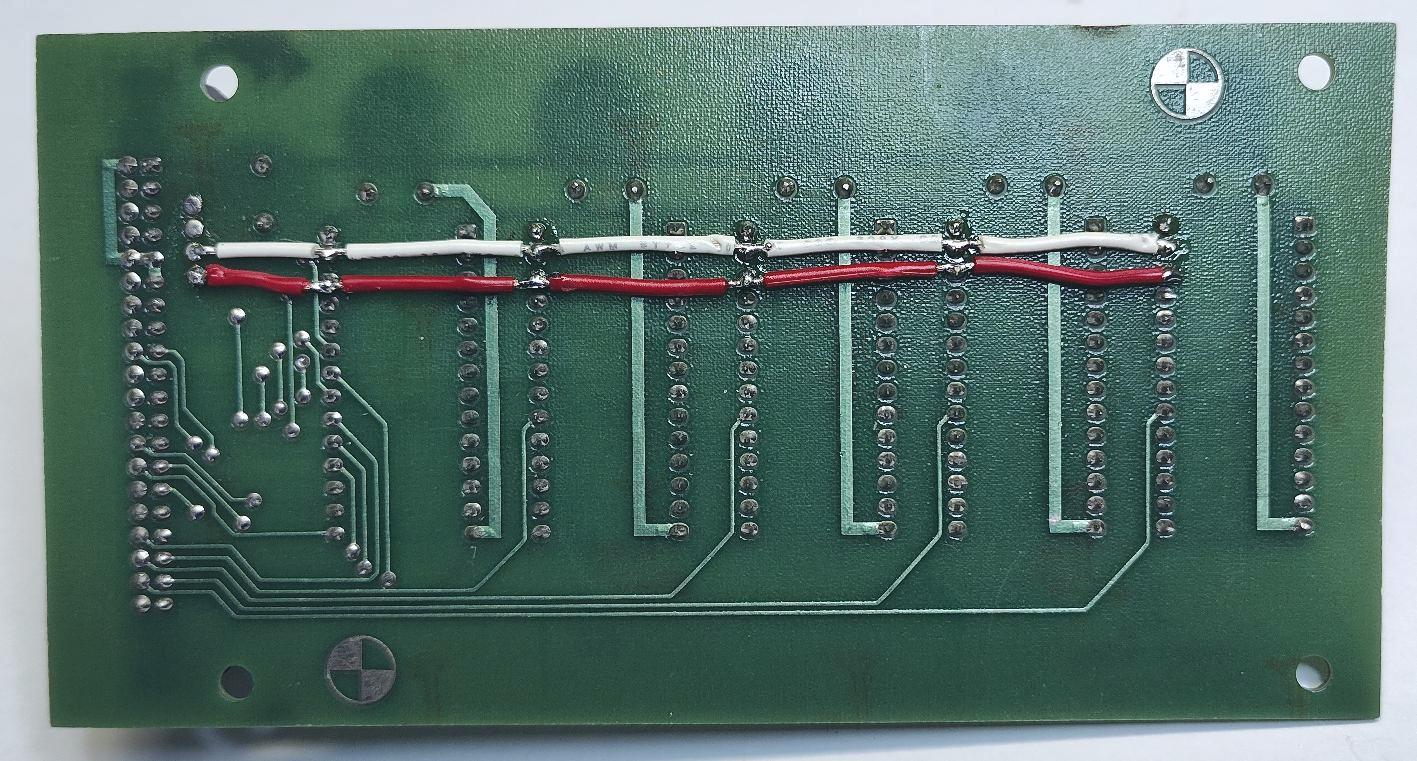

Solder a jumper wire connecting pin-26 on all five EPROMs to the 4th solder point down...
Board modification is complete.

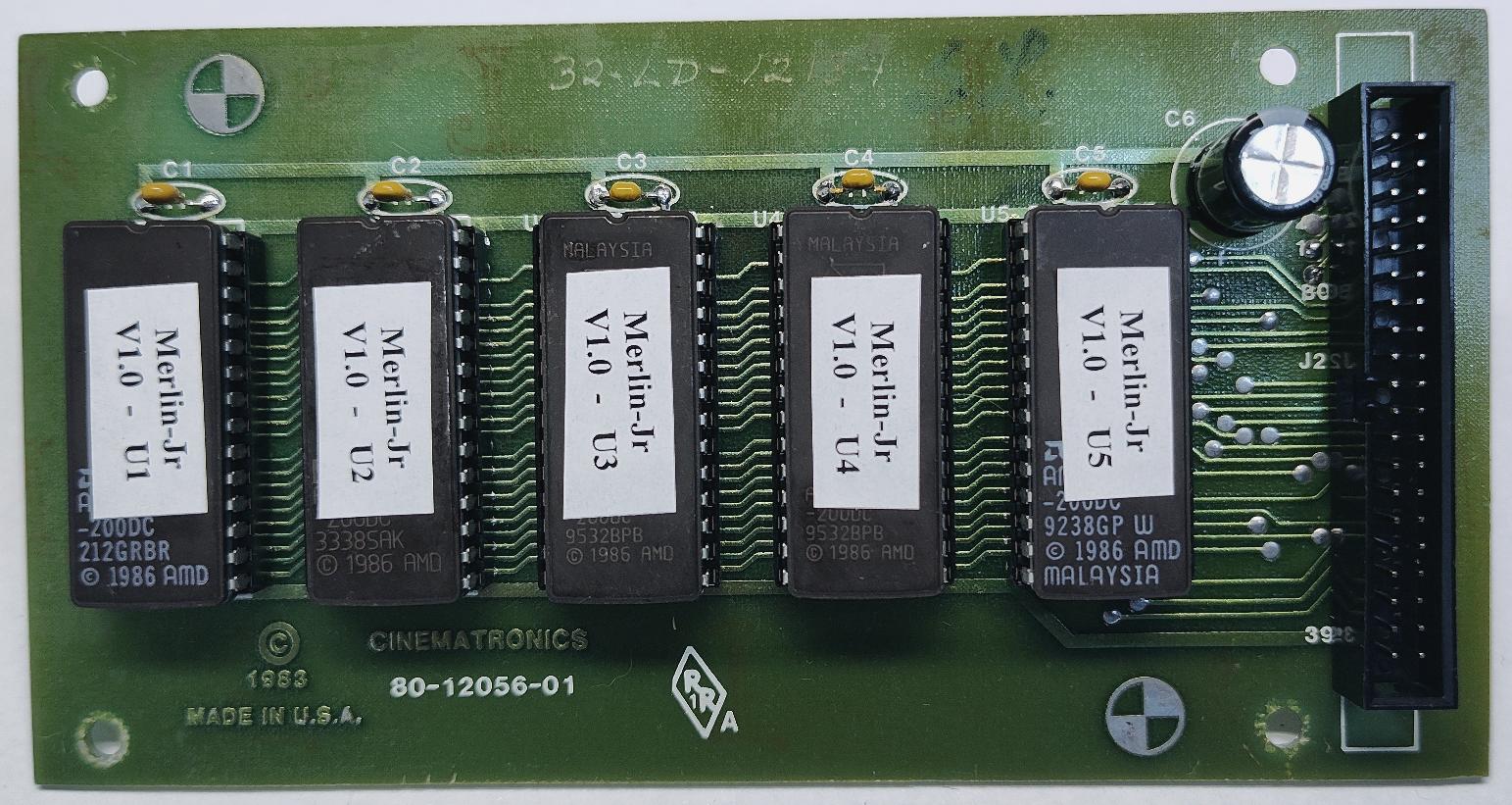

Install your new Merlin-Jr EPROM set
Reassemble the board. Set dip-switches according to the included settings charts, and enjoy the game!
